Exercise - Head Calculations

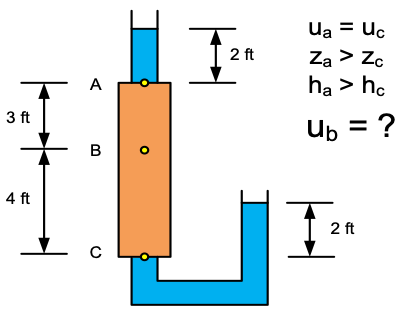

Consider the following cylinder of soil. There is a standpipe filled with 2 ft of water connected to point A and a standpipe with 2 ft of water above the exit point at C. Using the principles of hydraulic head, calculate the pore pressure at point B. Assume the soil is uniform.


Excel starter file: cylinder.xlsx

Excel solution: cylinder_key.xlsx
